光电复合电力电缆 OpticalPower Composite Cable

OPLC电缆 OPLCcables

一、适用范围

本产品适用于工频额定电压0.6/1 kV及以下电压等级，光纤接入的智能电网和多网融合配网用电缆

Range ofapplication

This product can be applied into intelligent power network with0.6/1 kV and below power frequency voltage and optical-fiberaccess，and also can be used for power distribution in multi-network integrations .

二、执行标准

GB/T29839-2013   额定电压1kV(Um=1.2kV)及以下光纤复合低压电缆

Executive standard

GB/T 29839-2013  rated voltage up to and including 1k(Um=1.2kV)optical fiber composite low voltage cables

三、使用特性

1.工频额定电压Uo/U/(U m)为0./1kV、系统最高电压Um为1.2 kV。

2.交联交聚乙烯绝缘电缆导体的长期允许最高工作温度为90℃，聚氯乙烯绝缘电缆导体的长期允许最高工作温度为70℃。

3.聚氯乙烯绝缘电缆短路时(最长持续时间不超过5s)电缆导体的最高温度不超过160℃，交联聚乙烯电缆短路时 (最长持续时间不超过5s)电缆导体的最高温度不超过250℃。

4.电缆敷设时环境温度不低于0℃。

Operating characteristics

1.The power frequency rated voltage Uo/U(Um) is 0.6/1kV,andsystem maximum voltage is 1.2kV.

2. Max.long-term allowable working temperature for the XLPEinsulated cable conductor is 90C;Max.long-term allowable working temperature for the PVCinsulated cable conductor is 70℃;

3.Max.temperature of conductor can't exceed 160℃ in shortcircuit for PVC insulated cables(Max.duration 1ess than 5s);Max.temperature of conductor can't exceed 250℃ in short-circuit for XLPEinsulated cables(Maxduration less than 5s)

4. Ambient temperature can't be minus in cable laving.

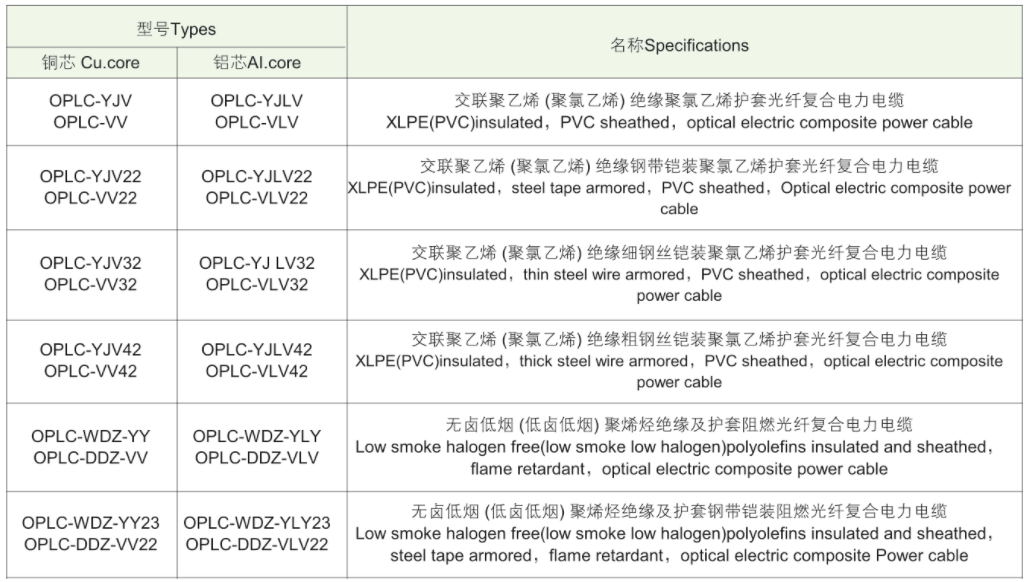

四、型号及规格 Type and specification

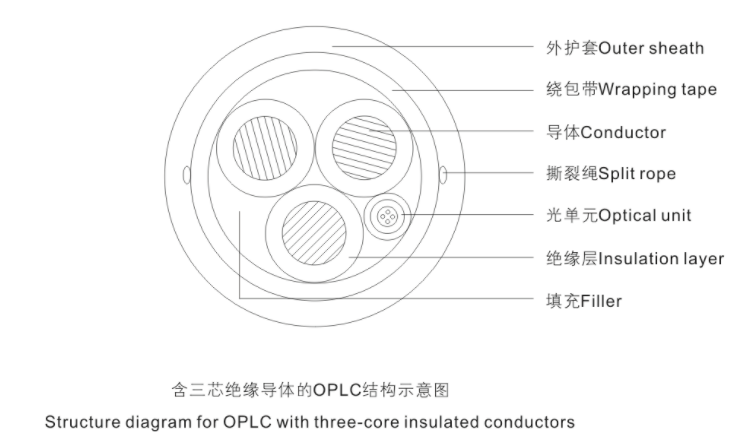

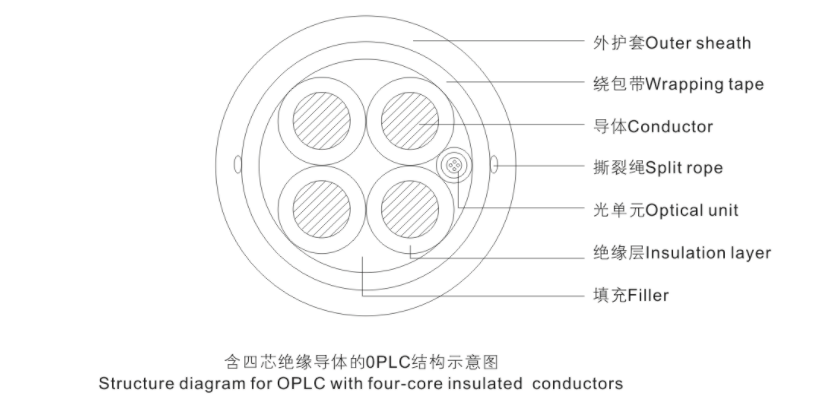

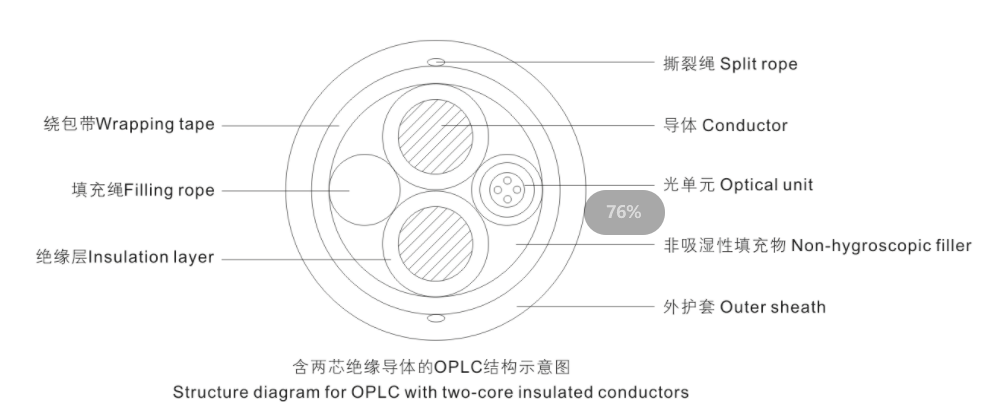

五、结构示意图 Structure diagrammatic drawing
