矿用控制电缆
煤矿用控制电缆
一、执行标准
Q/YZJX001-2015、Q/YZJX004-2012及MT/T386-2011
二、使用特性
额定电压Uo/U:450/750V;
工作温度:聚氯乙烯绝缘电缆不超过70C:
交联聚乙烯绝缘电缆不超过90C。
产品(见表1)Products(refer to table 1)
产品主要技术指标Main technicalindexes of produ cts
绝缘线芯标志:
本厂可提供的色标有白、红、黑、黄、蓝、绿、橙、灰、棕、紫十种，一般情况下，本厂都是用数字标志区分。

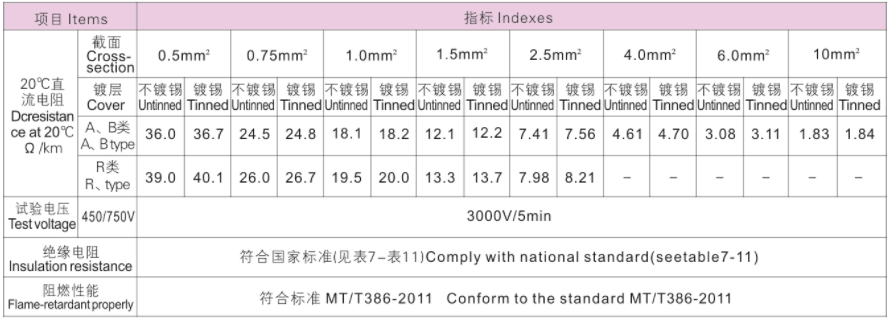

| 项目Items | 单位Unit | 指标Indexes | 执行标准Executive standard |
空气温度 Air temperature | ℃ | 200±3 | GB/T2951.5-2008 |
处理条件荷载时间 Time for managing conditional load | min | 15 | |
机械应力 Mechanical stress | N/cm² | 20 | |
| 负载下伸长率最大Max.elongation underload | % | 175 | |
| 冷却后永久伸长率最大Max.permanent elonaationafter cooling | % | 15 |
屏藏控制电缆屏蔽抑制系数(见表3)Screening inhibition coefficientof screened control cables(refer to table 3)
| 型号Types | MKVVP | MKVVP2 | MKVVRP | MKVVP2-22 |
屏蔽抑制系数≤ Screening inhibition coefficient | 0.01 | 0.01 | 0.01 | 0.005 |
三、型号及名称 Type and description
型号Types | 名称 Descriptions | 主要适用场所Main application occasions |
M KW | 煤矿用聚氧乙场绝绿聚氯乙烯护赛控制电现 PVC insulated and sheathed , contro cable for coal ming | 适用于煤矿中电镇沟、管道、一般用固定场合 Applicable for tunnels， pipelines and some fied places.far general use in coal mine |
MKVVP | 媒矿用聚氧乙峰绝级聚氯乙场护套钢丝增圳屏蔽控制电领 PVC insulated and sheathed ，copper wire braided screened ,control cable for ooell mine | 适用于煤矿中要柔屏蔽的固定场合 Applicable for some fixed places raquiring screan incoal mine |
MKVVP2 | 煤矿用聚氯乙端绝缘聚氯乙烯护套钢基屏蔽控制电领 PC ingulated and sheathed ，copper tape screened contral cable for ooal mine | 适用于煤矿中要求屏蔽的固定场合 Applicable far some fixed places requiring screen incoal mine |
MKVV22 | 煤矿用聚氧乙详绝缘聚氧乙场护套钢带饱装控制电编 PyC insulated and sheathed . steel tane armared , contro cable for coal mine | 适用于煤矿中电验沟、管道等需承受较大机械压力的固定场合，可直理 Applicable far tunnelspipelines and some fixed places which can bearcertain mechanical forces , and can be directly burled in ooe mine |
MKVV32 | 煤矿用聚氯乙烯绝嫌聚氯乙烤护套细钢丝她装控制电暖 PvC insulated and sheathed ,thin steel wire armored control ca ble for oga I mine | 适用于煤矿中电境沟、管道、竖并需承受较大机械压力和机械控力的图定场合，可直埋 Applicable for tunnels ,pipelines,shaft and some fored places which can bear certainmechanical force and mrechanical pulling foroe . and can be direclly buried in coal mine |
| MKVVR | 煤矿用聚氧乙梯绝绿聚氯乙烯护套控制软电缆 PyC insulated and sheathed , fexble contral cable for coal mine | 适用于煤矿中移动使用。要求柔软的场合 Applicable for places raquiring mavable and fleadbleoccaskons in coal mine |
| M KVVRP | 煤矿用聚氯乙烯绝缘聚氯乙烤护套铜丝编织屏蔽控制软电额 PvC insulated and sheathed , copper wine braided screened ，fexible control cable for coal mine | 适用于煤矿中移动使用、要求柔软，且需解蔽的场合 Applicable for places requiring mowable， flexible andscrcen accasions in coal mine |
| MKVVP2-22 | 煤矿用聚氯乙烯绝缘聚氧乙嫌护赛铜带屏蔽钢带绝装控制电 纳Coal mine with PyC insulated PVC sheathed copper belt BingBiGangsheathed oontrol cable | 适用于煤矿中要求拉干扰和需要承受较大机械压力的固定场合，可直理 Applicable to coal mime in interfereno and nged to bear langer mechanical pressure, fixedoccasion, can be directly burled |
| MKYJVP2-22 | 煤矿用交联聚乙烨蛇聚氯乙烤护套钢带屏蔽钢带范装控制电 领Coal mine with cross-inked polyethyylene insulated pyC sheathed coppetbelt BingBiGang sheathed control cable | 适用于煤矿中要求拉干扰和需要承受较大机械压力的固定场合，可直理 Applicable to coal mine in interference and need to bear larger mechanical pressure. fixedoccasion, can be direcily buried |
| MKYJV | 煤矿用交联聚乙据绝峰聚复乙烯护套控制电 魔XLPE insulated，PVC sheathed control cable for coal mine | 适用于煤矿中电埔沟、管道、一般用固定场合 Applicable for tunnels ， pipelines and same fooed plaoes'or genere use in coel mine |
| MKYJVP | 煤矿用交联聚乙嫌绝缘聚氯乙烯护套铜丝编织屏蔽控制电领 XLPE insulated，PvC sheathed ，copper wire braided screened ，control cable for oaal mine | 适用于煤矿中要求屏蔽的固定场合 Applica ble for some fixed pla ces requiring screenoccasions in caal mine |
| MKYJVP2 | 爆矿用交联聚乙详绝缘聚氧乙娇护套钢带屏蔽控制电 纷XLPE insulated t PVC sheathed/copper tape screened cantrol catle for coal mine | 适用于煤矿中要求屏蔽的固定场合 Applica ble for some fixed pla ces requiring screenoccasions in caal mine |
| MKYJV22 | 煤矿用交联聚乙姚绝缘聚氯乙烯护套钢带饱装控制电额 XLPE insulated，PvC sheathed f steel tape armored.cantral cable far coal mine | 适用于煤矿中电缆沟、管道等需承受较大机械压力的固定场合，可直理 Applicable for tunnels, pipelines and some fixed places which can bearcertain mechanical forces ， and can be directly burted in caal mine |
| MKYJV32 | 媒矿用交联坚乙峰绝级聚复乙烤护套组钢位装控制电经 XLPE insulated.pyC sheathed ，thin steel wire armored control cable for coal mine | 适用于煤矿中电坡沟、管道、竖井需承受较大机城压力和机械控力的图定合，可直埋 Applicable for tunnels，pipelines, shat and some fied places which can bear oerlainmechanical forces and echanical pulling forces, and can be directly buried in coal mine |
| MKYJVR | 煤矿用交联聚乙端绝缘聚氯乙娇护套控剧软电缆 XLPE insulated，PvC sheathed,fleble conitrocable for coal mine | 适用于煤矿中移动使用、要求柔软的场合 Applicable for places requiring movable and flexibleOCCaSionS in coal mine |
| MKYJVRP | 煤矿用交联聚乙媒终缘聚氧乙增护套铜丝增坝屏能控制软电销 XLPE insulated t PVC sheathed f copper wire braided sereenedflexible control cable for ooal mine | 适用于煤矿中移动使用、耍求乘软，且需所藏的场合 Applicable for places requiring mowable ，flexible andscrean occaslons in coal mine |

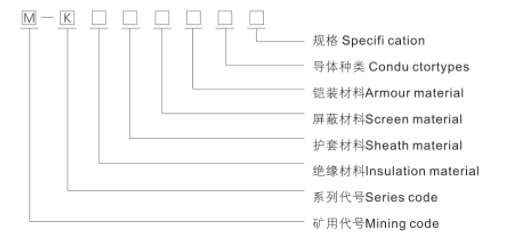

四、型号说明 Type description
项目Items | 代号 Codes | 说明 Descriptions |
| 矿用代号 Mining code | M | 矿用电缆 Mining cable |
| 系列代号 Series code | K | 控制电缆 Control cable |
| 绝缘材料Insulation material | V Y YJ | 聚氯乙烯 PVC 聚乙烯 Palythene 交联聚乙烯XLPE |
| 护套材料 Sheath material | V | 聚氯乙烯 PVC |
| 屏蔽材料 Screen material | / P P2 | 无屏蔽可省略 Non-screen can be omitted omitted钢丝编织 Copper wire braided 铜带 Copper tape |
| 铠装材料Armour material | 22 32 | 钢带铠装 Steel tape armored 细钢丝铠装 Thin steel wire armored |
| 导体种类 Conductor types | R | 多股软导体(A-单导体，B-七股绞合导体)Multi-stranded flexible condu ctor(A-single conductor.B-conductor stranded by 7 wires) |
| 规格 Specifi cation | 填写芯数x导体截面(N*S) Fill in core number x condu ctor cross Section(NxS) 芯数N:2、3、4、5.......61 Core number N: 2、3、4、5........61 截面S: 0.5、0.7 5、1.0、1.5、25、4、6、10mm² Cross section S:0.5、0.75、1.0、1.5、2.5、4、6、10mm² |
